Background Queues Module

The Background Queues module is a comprehensive asynchronous task processing system for the Comdeall platform that handles long-running operations, scheduled tasks, and background job processing. Built on BullMQ, it provides robust job management with advanced features including dead letter queues (DLQ), priority scheduling, delayed execution, and comprehensive monitoring. The system manages critical operations like email delivery, notifications, appointments, payments, and media processing to ensure optimal application performance and user experience.

The system supports advanced features such as:

• Dead Letter Queues (DLQ) for failed job tracking and post-mortem analysis
• Delayed and Priority Jobs for scheduled task execution and importance-based processing
• Dashboard UI for real-time queue monitoring and management
• Comprehensive Logging with event tracking and error handling
• Modular Architecture with dedicated processors for different job types

🔐 The queues dashboard is secured and available at:

• Staging Queue Dashboard
• Production Queue Dashboard

Table of Contents

1. Module Structure
2. Queue Architecture
3. Core Features
4. Queue Types
5. Job Management
6. Dead Letter Queue System
7. Monitoring & Dashboard
8. Integration Points
9. Technical Implementation
10. Best Practices
11. Conclusion

Module Structure

The Background module follows a modular architecture with specialized queue processors:

@Module({
  imports: [
    BullModule.registerQueue(...QUEUE_LIST.map((name) => ({ name }))),
    EmailQueueModule,
    NotificationQueueModule,
    AppointmentsQueueModule,
    PaymentQueueModule,
    CronModule,
    BullBoardModule.forRoot({
      route: RouteNames.QUEUES_UI,
      adapter: ExpressAdapter,
      boardOptions: {
        uiConfig: {
          boardTitle: 'Comdeall Queues',
        },
      },
    }),
  ],
  providers: [BackgroundServiceManager],
  exports: [BackgroundServiceManager],
})
export class BackgroundModule {}

Core Components:

1. Background Service Manager: Central service for managing all queue operations and job dispatching

2. Queue Modules: Specialized modules for different job types:

   • EmailQueueModule: Email delivery and notification processing
   • NotificationQueueModule: Push notification and device messaging
   • AppointmentsQueueModule: Appointment scheduling and lifecycle management
   • PaymentQueueModule: Payment processing and webhook handling
   • CronModule: Scheduled task execution and recurring jobs

3. Processors: Dedicated job processors with concurrency control and error handling

4. Dashboard Integration: BullBoard UI for real-time queue monitoring and management

5. Dead Letter Queue: Centralized failed job handling and post-mortem analysis

Queue Architecture

Queue Types and Organization

The system implements multiple specialized queues for different operational aspects:

export enum QueueName {
  EMAIL = 'email',
  MEDIA_UPLOAD = 'media-upload',
  NOTIFICATION = 'notification',
  DEAD_LETTER = 'dead-letter',
  CRON = 'cron',
  APPOINTMENTS = 'appointments',
  PAYMENT = 'payment',
}

Queue Specialization:

• Email Queue: Registration emails, OTP delivery, support notifications
• Notification Queue: Push notifications, device messaging, topic broadcasts
• Appointments Queue: Appointment lifecycle, scheduling, status updates
• Payment Queue: Payment processing, webhook handling, subscription management
• Cron Queue: Scheduled tasks, recurring jobs, maintenance operations
• Dead Letter Queue: Failed job analysis and manual intervention

Queue Configuration and Defaults

Standardized configuration ensures consistent behavior across all queues:

export const DEFAULT_JOB_OPTIONS = {
  attempts: 3,
  backoff: {
    type: 'exponential',
    delay: 1000 * 60, // 1 min between retries
  },
  removeOnComplete: {
    age: 60 * 60 * 24, // Keep for 1 day
    count: 5000, // max entries to keep
  },
  removeOnFail: {
    age: 60 * 60 * 24 * 7, // Keep for 7 days
  },
};

Configuration Features:

• Retry Logic: Exponential backoff with configurable attempts
• Job Cleanup: Automatic removal of completed and failed jobs
• Memory Management: Controlled job retention to prevent memory issues
• Performance Optimization: Balanced configuration for optimal throughput

Core Features

Asynchronous Task Processing

Complete decoupling of time-consuming operations from request-response cycles:

Processing Benefits:

• Non-blocking Operations: HTTP requests return immediately while jobs process in background
• Scalable Performance: Parallel job processing with configurable concurrency
• Resource Optimization: Efficient resource utilization with job prioritization
• Fault Tolerance: Comprehensive error handling with automatic retry mechanisms

Advanced Job Scheduling

Sophisticated scheduling capabilities support complex business requirements:

Scheduling Features:

• Delayed Execution: Jobs scheduled for future execution with precise timing
• Priority Queuing: High-priority jobs processed before standard jobs
• Recurring Tasks: Cron-based scheduling for recurring operations
• Conditional Processing: Jobs triggered by specific events or conditions

Comprehensive Monitoring

Real-time visibility into queue operations and system health:

Monitoring Capabilities:

• Job Status Tracking: Real-time job progress and completion status
• Performance Metrics: Queue throughput, processing times, and success rates
• Error Analysis: Failed job analysis with detailed error information
• Resource Utilization: Memory usage, CPU consumption, and queue depth monitoring

Queue Types

Email Queue

Handles all email-related operations with template management and delivery tracking:

Email Job Types:

export enum JobName {
  OTP_EMAIL_VERIFICATION = 'email-otp-verification',
  REGISTRATION_EMAIL = 'registration-email',
  WITHDRAW_WALLET_REQUEST_EMAIL = 'withdraw-wallet-request-email',
  WITHDRAW_WALLET_REQUEST_FAILURE_EMAIL = 'withdraw-wallet-request-failure-email',
  SUPPORT_TICKET_RESOLVED_EMAIL = 'support-ticket-resolved-email',
  NOTE_ADDED_EMAIL = 'note-added-email',
}

Features:

• Template Processing: Dynamic email template generation with user data
• Delivery Tracking: Email delivery status monitoring and reporting
• Failover Support: Multiple email provider support with automatic failover
• Compliance Logging: Complete audit trail for email communications

Notification Queue

Manages push notifications and device messaging across platforms:

Notification Operations:

• Device Notifications: Direct push notifications to specific devices
• Topic Broadcasting: Group notifications using Firebase topics
• Custom Notifications: Admin-initiated custom notification campaigns
• Notification Logging: Comprehensive notification delivery tracking

Integration Features:

• Firebase Integration: Native Firebase Cloud Messaging support
• Multi-platform Support: iOS and Android notification delivery
• Device Management: Device token validation and cleanup
• Delivery Analytics: Notification delivery rates and engagement metrics

Appointments Queue

Handles appointment lifecycle management and scheduling operations:

Appointment Processing:

• Appointment Scheduling: Automated appointment creation and confirmation
• Status Management: Appointment status updates and notifications
• Reminder System: Automated appointment reminder delivery
• Lifecycle Tracking: Complete appointment lifecycle from creation to completion

Scheduling Features:

• Start/End Jobs: Automated appointment start and end processing
• Expiration Handling: Expired appointment cleanup and notification
• Status Synchronization: Real-time status updates across all platforms

Payment Queue

Manages payment processing, webhooks, and subscription operations:

Payment Operations:

• Webhook Processing: Razorpay webhook handling and validation
• Subscription Management: Subscription lifecycle and pricing updates
• Refund Processing: Automated refund handling and notification
• Price Updates: Subscription price change management

Financial Features:

• Transaction Tracking: Complete transaction audit trail
• Webhook Validation: Secure webhook signature verification
• Subscription Lifecycle: Automated subscription status management
• Financial Notifications: Payment confirmation and failure notifications

Cron Queue

Executes scheduled and recurring tasks for system maintenance:

Scheduled Operations:

export enum CronJobName {
  DAILY_MAIL = 'daily-mail',
  PLAN_RENEWAL_NOTIFICATION = 'plan-renewal-notification',
  CHECK_MISSING_SESSION_NOTES = 'check-missing-session-notes',
}

Cron Features:

• Daily Operations: Daily summary emails and maintenance tasks
• Renewal Notifications: Subscription renewal reminder system
• Data Validation: Automated data consistency checks
• System Maintenance: Automated cleanup and optimization tasks

Job Management

Job Lifecycle Management

Comprehensive job lifecycle tracking from creation to completion:

Lifecycle Stages:

1. Job Creation: Job queued with appropriate priority and delay
2. Job Processing: Worker picks up job and begins execution
3. Progress Tracking: Real-time progress updates and logging
4. Completion/Failure: Job completes successfully or fails with error details
5. Cleanup: Automatic job cleanup based on retention policies

Job Event Monitoring

Detailed event tracking provides comprehensive visibility:

Event Types:

• active: Job begins processing
• progress: Job progress updates
• completed: Successful job completion
• failed: Job failure with error details
• stalled: Job processing stalled
• error: Worker-level errors

Event Logging:

@OnWorkerEvent('failed')
async onFailed(job: Job) {
  const logString = `Job ${job.id} has failed with reason: ${job.failedReason}`;
  this.logger.error(logString);
  if (typeof job.log === 'function') job.log(logString);
}

Priority and Delay Management

Advanced job scheduling supports complex business requirements:

Priority Scheduling:

• High Priority: Critical operations like payment processing
• Normal Priority: Standard operations like email delivery
• Low Priority: Background maintenance and cleanup tasks

Delayed Execution:

• Appointment Reminders: Scheduled for specific times before appointments
• Subscription Renewals: Timed for renewal dates
• Retry Operations: Delayed retries with exponential backoff

Dead Letter Queue System

Centralized Failed Job Management

The Dead Letter Queue provides comprehensive failed job analysis:

export interface IDLQFailedJobData {
  originalQueueName: QueueName;
  originalJobId: string;
  originalJobName: string;
  originalJobData: any;
  failedReason: string;
  originalJobAttempts?: number;
  stacktrace?: string[];
  timestamp: number;
}

DLQ Features:

• Failed Job Tracking: Complete failed job metadata and context
• Post-mortem Analysis: Detailed failure analysis for debugging
• Manual Intervention: Tools for manual job retry and investigation
• Automated Notifications: Developer alerts for critical failures

DLQ Processing and Notifications

Automated DLQ processing ensures rapid failure response:

DLQ Operations:

1. Failure Detection: Failed jobs automatically moved to DLQ
2. Metadata Collection: Complete failure context and stack traces
3. Developer Notification: Email alerts to development team
4. Dashboard Integration: Failed jobs visible in monitoring dashboard

Notification Features:

• Environment Awareness: Different notification strategies for development vs production
• Rich Context: Detailed failure information for rapid debugging
• Dashboard Links: Direct links to failed job details in monitoring interface

Monitoring & Dashboard

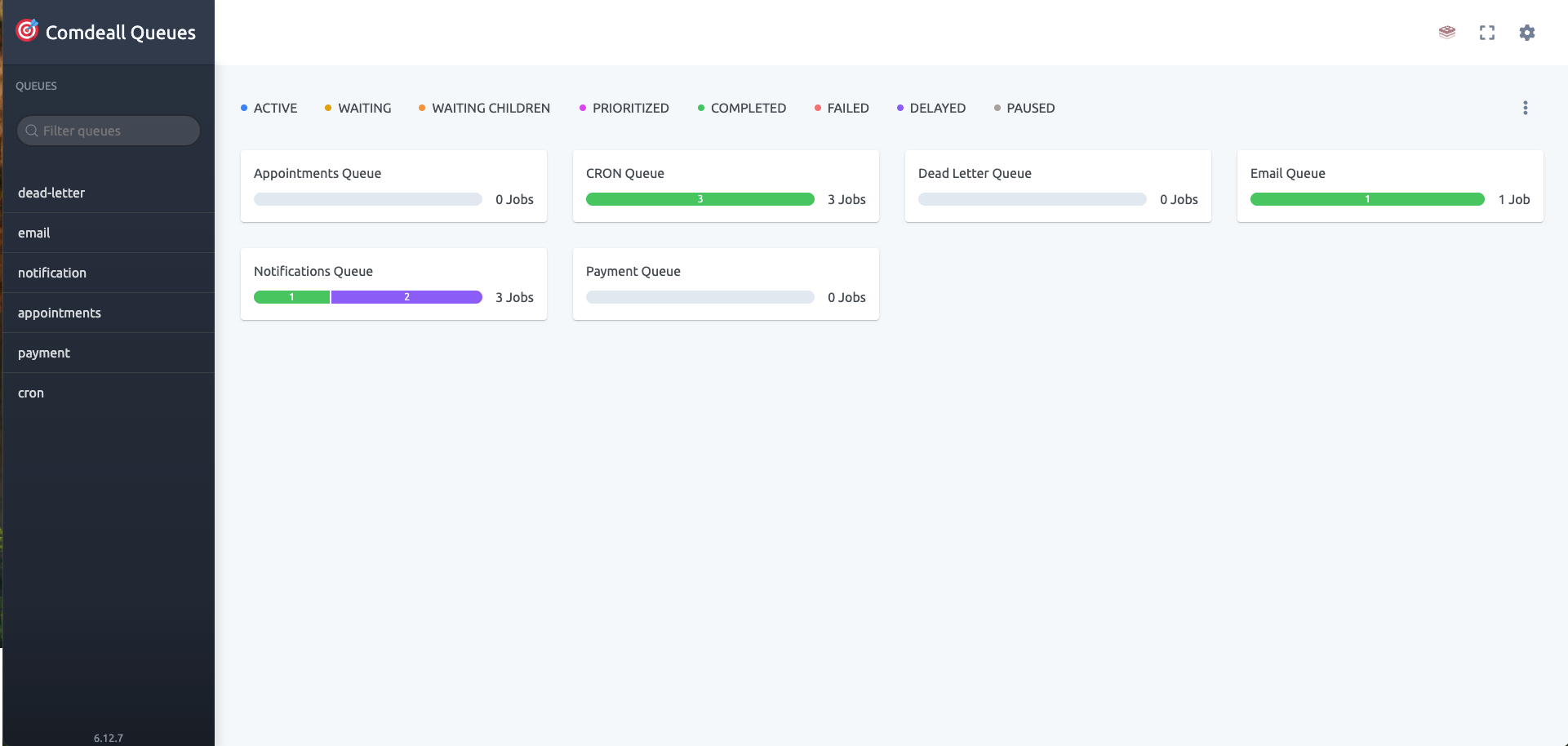

BullBoard Dashboard Integration

Comprehensive dashboard provides real-time queue monitoring:

Dashboard Features:

• Queue Overview: Real-time status of all queues and job counts
• Job Details: Individual job inspection with logs and metadata
• Performance Metrics: Queue throughput and processing statistics
• Job Management: Manual job retry, deletion, and status modification

Access Control:

• Secured Access: Dashboard access controlled through application authentication
• Environment-Specific: Separate dashboards for staging and production environments
• Role-Based: Different access levels for developers and administrators

Real-time Monitoring

Live monitoring capabilities provide immediate system visibility:

Monitoring Features:

• Job Status: Real-time job status updates and progress tracking
• Queue Depth: Current queue sizes and processing backlogs
• Error Rates: Failed job percentages and error trend analysis
• Performance Metrics: Job processing times and throughput statistics

Integration Points

Application Module Integration

Seamless integration with the main application architecture:

Integration Features:

• Service Injection: Background services available throughout application
• Event-Driven: Queue jobs triggered by application events
• Database Integration: Queue operations coordinated with database transactions
• API Integration: Background jobs triggered by API operations

External Service Integration

Queue operations integrate with external services and APIs:

External Integrations:

• Email Providers: Integration with Brevo, Resend, and Mailjet
• Firebase: Push notification delivery through Firebase Cloud Messaging
• Payment Gateways: Razorpay webhook processing and payment operations
• Storage Services: Media upload processing with cloud storage providers

Technical Implementation

Queue Processor Architecture

Each queue implements a dedicated processor with specialized logic:

@Processor(QueueName.EMAIL)
export class EmailProcessor extends WorkerHost {
  async process(job: Job<EmailJobTypes>): Promise<any> {
    // Specialized email processing logic
    return this.emailQueueService.processEmailJob(job.data);
  }
}

Processor Features:

• Dedicated Logic: Specialized processing for each job type
• Error Handling: Comprehensive error catching and logging
• Event Monitoring: Complete job lifecycle event tracking
• Performance Optimization: Efficient processing with minimal resource usage

Job Interface Design

Strongly-typed job interfaces ensure data consistency:

Interface Benefits:

• Type Safety: Compile-time validation of job data structures
• Documentation: Self-documenting job requirements and formats
• Validation: Runtime validation using class-validator decorators
• IDE Support: Enhanced development experience with autocomplete and error detection

Configuration Management

Centralized configuration ensures consistent behavior:

Configuration Features:

• Environment-Specific: Different settings for development, staging, and production
• Retry Policies: Configurable retry attempts and backoff strategies
• Cleanup Policies: Automatic job cleanup with configurable retention periods
• Concurrency Control: Configurable worker concurrency for optimal performance

Best Practices

Job Design Principles

Effective job design ensures reliable and maintainable background processing:

Design Guidelines:

• Idempotent Operations: Jobs should be safely retryable without side effects
• Small Job Scope: Individual jobs should handle single, focused operations
• Error Resilience: Comprehensive error handling with appropriate retry strategies
• Timeout Management: Reasonable timeouts to prevent resource exhaustion

Performance Optimization

Queue performance optimization ensures scalable background processing:

Optimization Strategies:

• Batch Processing: Group related operations for efficient processing
• Priority Management: Use priority queues for time-sensitive operations
• Resource Monitoring: Monitor memory and CPU usage for optimal performance
• Queue Balancing: Distribute load across multiple workers and queues

Monitoring and Alerting

Comprehensive monitoring ensures reliable queue operations:

Monitoring Practices:

• Queue Depth Monitoring: Alert on excessive queue backlogs
• Error Rate Tracking: Monitor failed job percentages and trends
• Performance Metrics: Track job processing times and throughput
• Dead Letter Queue: Regular review of failed jobs for system improvement

Conclusion

The Background Queues module provides a robust, scalable, and comprehensive asynchronous processing foundation for the Comdeall platform. Key strengths include:

Comprehensive Queue Management:

• Specialized Queues: Dedicated processing for emails, notifications, appointments, and payments
• Advanced Scheduling: Priority queues, delayed execution, and recurring tasks
• Dead Letter Queue: Centralized failed job management with detailed analysis
• Real-time Monitoring: Live dashboard with comprehensive job tracking and management

Production-Ready Features:

• BullMQ Integration: Industry-standard queue processing with Redis backing
• Error Handling: Comprehensive error management with automatic retry mechanisms
• Performance Optimization: Efficient job processing with configurable concurrency
• Security Implementation: Secured dashboard access with environment-specific configurations

Operational Excellence:

• Monitoring Dashboard: Real-time queue monitoring with job management capabilities
• Automated Notifications: Developer alerts for critical failures and system issues
• Comprehensive Logging: Detailed job tracking and audit trails for compliance
• Scalable Architecture: Supports high-volume job processing with horizontal scaling

The module's architecture enables reliable, efficient, and maintainable background processing essential for the therapy management platform, ensuring optimal user experience through non-blocking operations and comprehensive system monitoring.

---

Usage Examples

Adding Jobs to Queues

import { Injectable } from '@nestjs/common';
import { BackgroundServiceManager } from '@bg/background-service-manager';
import { IOtpEmailJob } from '@bg/interfaces/job.interface';

@Injectable()
export class AuthService {
  constructor(private readonly backgroundServiceManager: BackgroundServiceManager) {}

  async sendOtpEmail(email: string, otp: number) {
    const jobData: IOtpEmailJob = { email, otp };
    await this.backgroundServiceManager.addOtpEmailJob(jobData);
  }
}

Scheduled and Priority Jobs

// High priority appointment notification
await this.backgroundServiceManager.addNotificationJob(notificationData, {
  priority: 10,
  delay: 0
});

// Delayed appointment reminder
await this.backgroundServiceManager.addNotificationJob(reminderData, {
  delay: 24 * 60 * 60 * 1000 // 24 hours delay
});

---

Benefits

✅ Fully Asynchronous: Non-blocking operations improve application responsiveness

✅ Robust Error Handling: Comprehensive error tracking with automatic retry and DLQ

✅ Central Monitoring: Authenticated dashboard with real-time queue visibility

✅ Advanced Scheduling: Priority and delayed job execution for complex workflows

✅ Modular Architecture: Extensible queue design for easy feature additions

✅ Production Ready: Comprehensive logging, monitoring, and error handling

📘 Note: Always ensure jobs are idempotent, define appropriate retry limits, and monitor queue performance regularly for optimal system operation.
